Correct me if I am wrong
Hi BeeMaa, is that a Swedish
Kalixteknik adjustable check riser?
More Blaser specific buttpad and stock spacer info for those who may need it.
I added an adjustable stock to my rifle. When I went to install the butt pad and spacer kit (p/n C39878) with it, the top bolt bottomed out. The bottom bolt was fine, but the addition of the adjustable comb robbed some space from the top.
View attachment 641028
First a few specs. The bolts takes a 3mm Allen key to remove and are threaded M5x0.8. Before cutting the bolt to length, I put a M5x0.8 die on the bolt and ran it all the way to the head. This way I could clean the threads after cutting to length. I took my time and ended up taking off 17mm before I was happy with the fit. I'm only using two of the three spacer in the kit, but I believe that even if all three spacers were used cutting the bolt down would be necessary for proper fit.

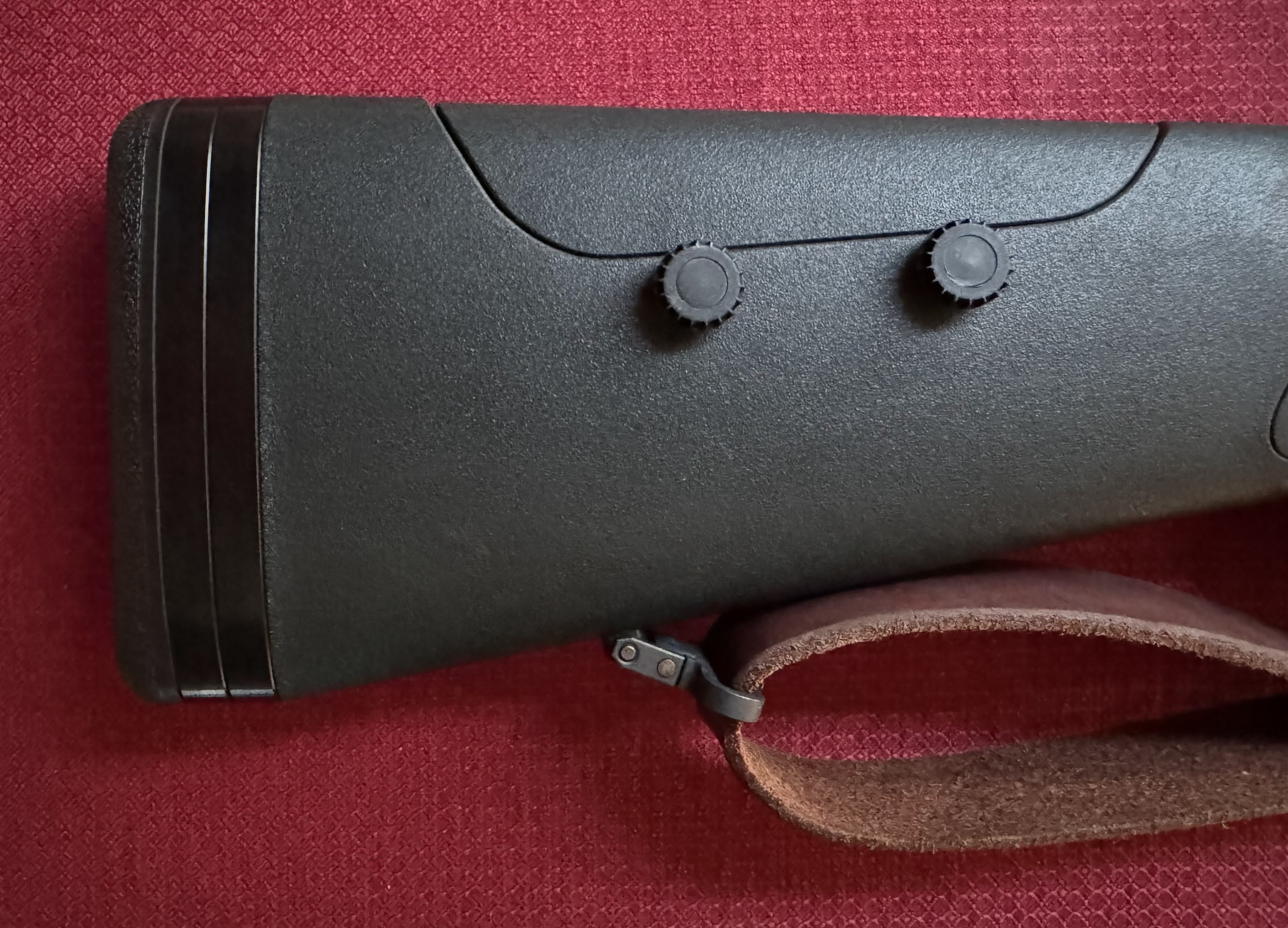

View attachment 641029
I understand that everyone doesn't have metric tap and die sets laying around but if you run into this, at least you will know what direction to go.
Hi BeeMaa, is that a Swedish
Kalixteknik adjustable check riser?
