416 Taylor Info and Advice

[Jefferry404]

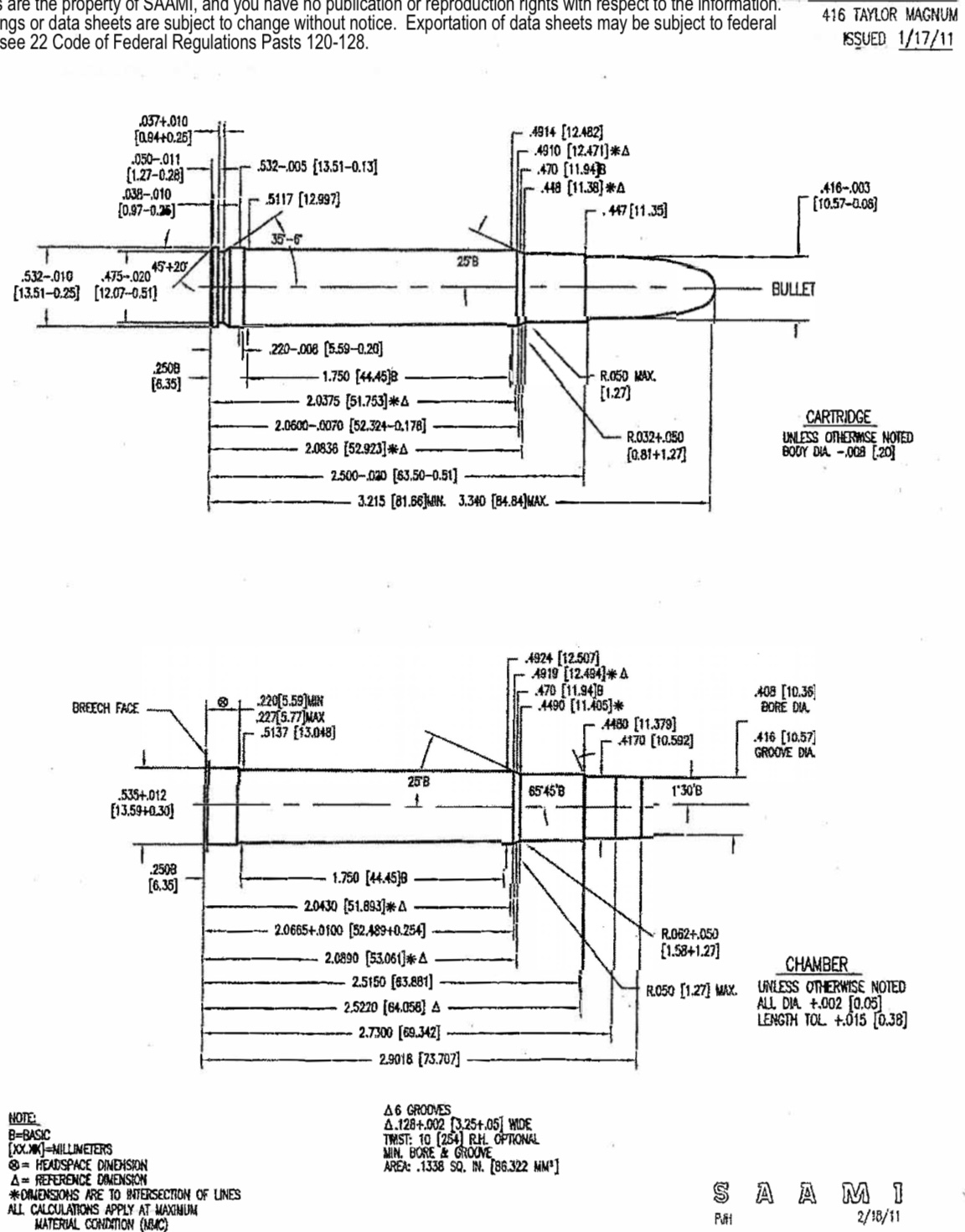

For reference, here is the Saami spec. From 2011

416 Taylor Magnum Pressure limits:

MAP – CUP Not Est. 65,000 psi
MPLM – CUP Not Est. 66,600 psi
MPSM - CUP Not Est. 69,100 psi
Velocity
400 grain – 2,370 fps



[Maskell Shotgun academy]

For reference, here is the Saami spec. From 2011

416 Taylor Magnum Pressure limits:

MAP – CUP Not Est. 65,000 psi
MPLM – CUP Not Est. 66,600 psi
MPSM - CUP Not Est. 69,100 psi
Velocity
400 grain – 2,370 fps

View attachment 712651

Thanks so much



[cajunchefray]

Great info. What is the barrel twist rate you are using? I've seen from 1:10 to 1:14.



[Jefferry404]

not super big on fast twist and will be shooting 400gn or less. The recent 416s are 1:14. Rigby is 1:16.54" . Asquare says 1:10.
I use 1:12 (which gives me 2 complete revolutions in my 24" barrel.



[Jefferry404]

will also have Matrix machine up my drop flat bottom floorplate to get 4 down.



[cajunchefray]

not super big on fast twist and will be shooting 400gn or less. The recent 416s are 1:14. Rigby is 1:16.54" . Asquare says 1:10.
I use 1:12 (which gives me 2 complete revolutions in my 24" barrel.

Good information thanks was thinking 1:12 is the sweet spot for my favorite cartridge.



[Maskell Shotgun academy]

will also have Matrix machine up my drop flat bottom floorplate to get 4 down.
View attachment 712713

View attachment 712714

For what action?



[Jefferry404]

For what action?

For cz550 medium action.



[Jefferry404]

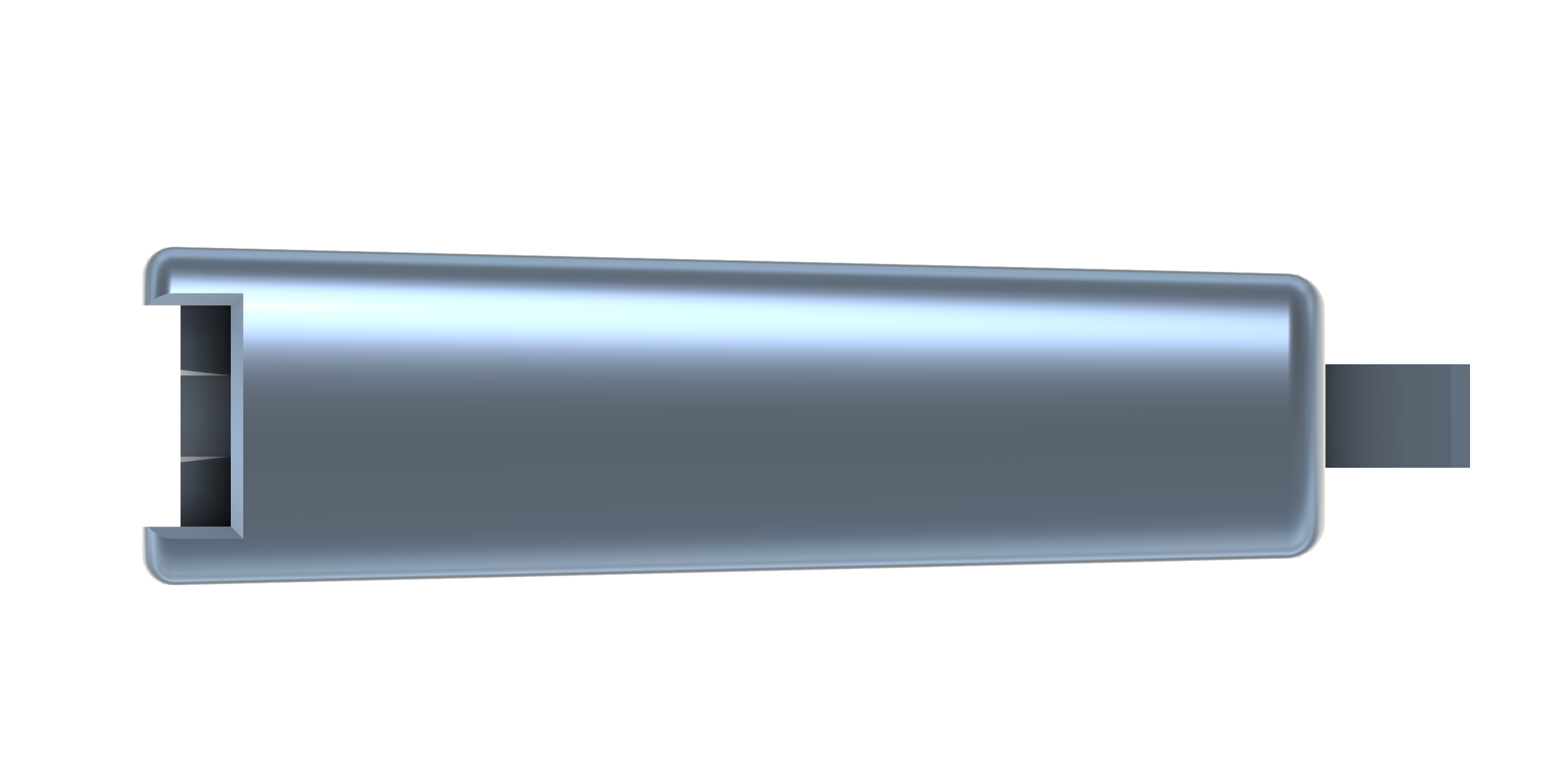

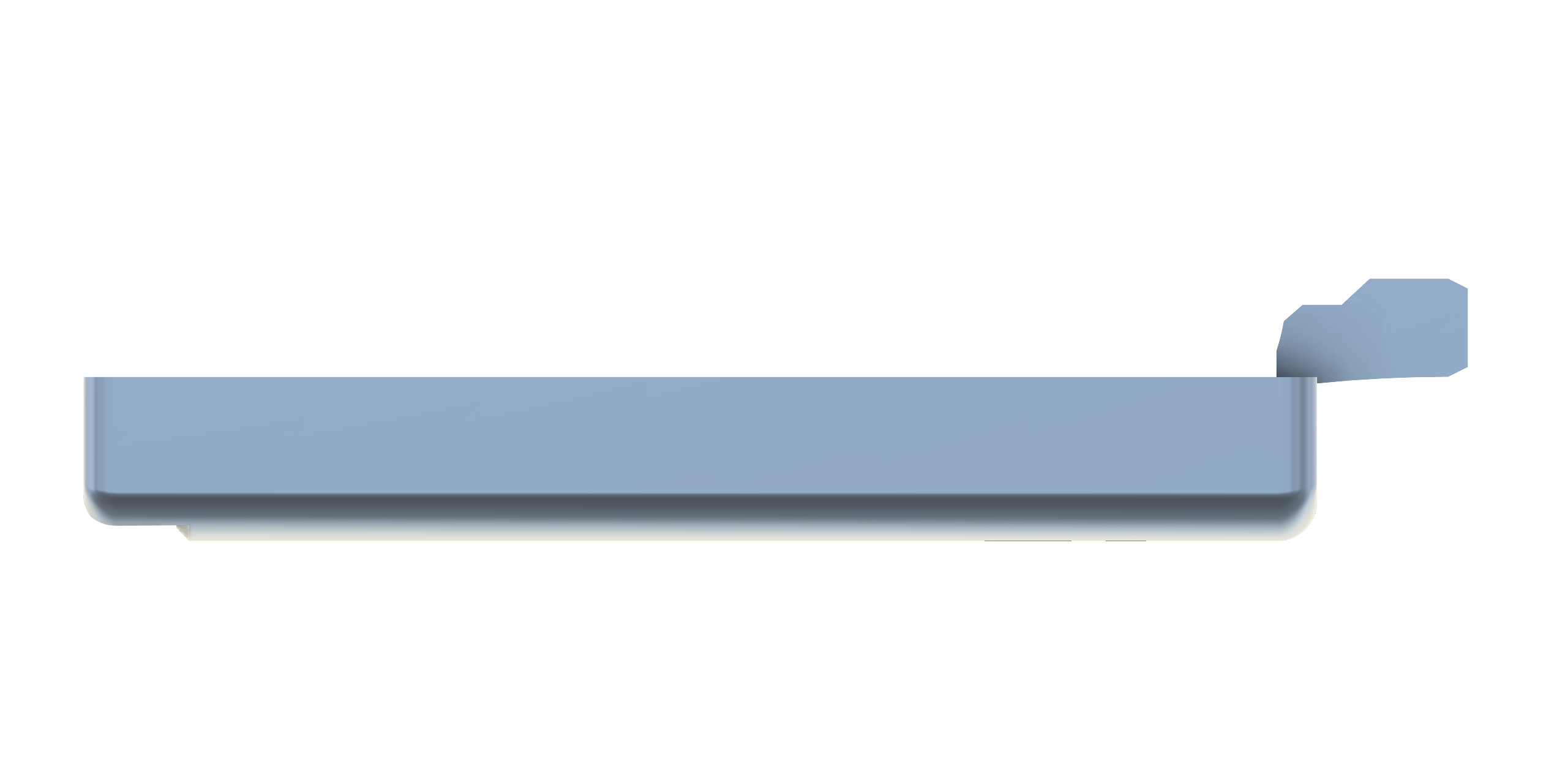

first pass fit to the medium action.
I should the internal depth is about the same as the cz factory FP.
