300 Win solids

[AimSmall]

300 Win Mag 180 solids for your Tiny Ten:



[Firebird]

A great idea-who makes them and we’re you able to get them to shoot the same as soft points?



[Philip Glass]

Interested. I need to have some loaded for tinies. Advice?



[BonUm16]

A great idea-who makes them and we’re you able to get them to shoot the same as soft points?

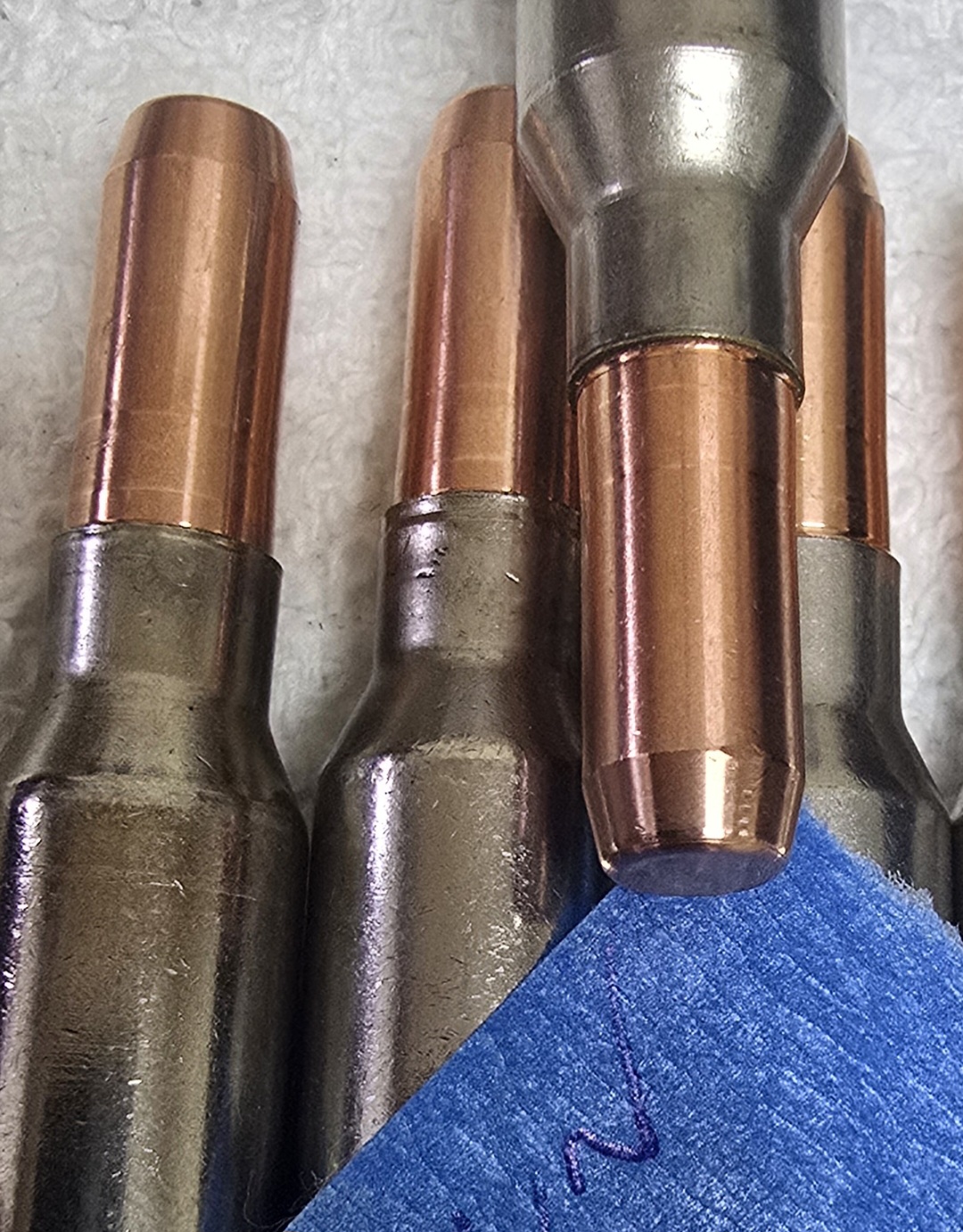

Open the attached image and you’ll answer both of your questions.



[Firebird]

Sure enough



[AimSmall]

Cutting Edge Bullets.

...and used the same powder charge (RL22) as the Swift Scirocco.

Had great luck with these in other calibers, have not used the 300 on game.



[michael458]

In 300 Winchester I used IMR 4350 for the test work we did in 2024............

180 CEB Solid 68% Meplat		COL 3.345
2/22/24	180 CEB Solid	69/IMR 4350	Fed 215	0	0	0	2896	X2—54400 PSI >> 71 grs
				55000	53700	1300	5440
2/23/2024	180 CEB Solid	71/IMR 4350	Fed 215	2992	2973	19	2982	X2—62600 PSI—PACT Velocity
				63900	61400	2500	62600	Can add 30 fps for Radar Velocity
								COL 3.345

210 CEB Solid 68% Meplat		COL 3.380
2/22/24	210 CEB Solid	68/IMR 4350	Fed 215	2857	2843	13	2850	X2—67200 PSI >>>>66 gr
				69100	65200	3900	67200
2/23/2024	210 CEB Solid	67/IMR 4350	Fed 215	2820	2810	10	2815	X2—62700 PSI—Radar Velocity
				63200	62200	1000	62700	COL 3.380

230 CEB Solid 68% Meplat		COL 3.630
2/22/24	230 CEB Solid	66/IMR 4350	Fed 215	2670	2645	25	2657	X2—60600 PSI
				61500	59800	1700	60600	COL 3.630

For 308 Winchester I used IMR 8208 and IMR 4064;

180 CEB Solid 68% Meplat		COL 2.770
2/22/24	180 CEB Solid	40/IMR 8208	Fed 210	0	0	0	0	X2—52000 PSI
				52300	51700	600	52000
2/23/2024	180 CEB Solid	42/IMR 4064	Fed 210	2552	2544	8	2548	X2—55800 PSI
				56500	55200	1300	55800	COL 2.770

210 CEB Solid 68% Meplat		COL 2.785
2/22/24	210 CEB Solid	39/IMR 8208	Fed 210	0	0	0	0	X2—61600 PSI
				61900	61200	700	61600
2/23/2024	210 CEB Solid	39/IMR 4064	Fed 210	2309	2304	5	2307	X2—55300 PSI
				55300	55300	0	55300	COL 2.785

230 CEB Solid 68% Meplat		COL 3.028
2/22/24	230 CEB Solid	37/IMR 4064	Fed 210	0	0	0	2106	X2—47200 PSI
				47900	46600	1300	47200
2/23/2024	230 CEB Solid	38/IMR 4064	Fed 210	2156	2151	5	2153	X2—48600 PSI
				48700	48400	300	48600
2/23/2024	230 CEB Solid	39/IMR 4064	Fed 210	2216	2215	1	2216	X2—55100 PSI
				55400	54900	500	55100	COL 3.028

Pressures listed in RED is OVER MAX Pressures...... DO NOT USE...........

These are Copper and fall under Factor #3 of the 8 Factors of Solid Terminal Penetration.

#3 Construction & Material
Construction of a solid is a major part of its ability to penetrate. To deny this is foolish to say the least. Some of our solids out there, lead core, are very very weak in construction and absolutely do not have the ability to bust through heavy bone and reach their intended targets. I have seen and have in hand failures of these bullets from the field..... A shame as well, as some of these bullets are promoted as Dangerous Game Solids, and some of them flatten out like pancakes when hitting heavy dense material. Some FMJ Have steel inserts, while this solves a problem in one area, it creates problems in other areas.... Brass is harder than Copper... No surprise there, but I have busted elephant heads with both copper and brass, and never had one distort, but, these solids were of a very STRONG NOSE PROFILE as well........ So you see, combinations of different factors work together to strengthen or weaken other factors..... A good strong Nose Profile, can overcome some material deficiencies and in the case of copper solids this is extremely important.


Any Solid, Brass or Copper, can and will distort even in soft tissue at higher velocity Impacts. These 308 Copper Solids are fantastic, but at high velocity the copper will flow. This effects straight line deep penetration. The lower the velocity, in some cases, penetration is enhances both depth and stability.

One other tidbit of information, most of the bullets compacted, became shorter after terminals. Of some consequence for some applications, but interesting to note, and would not be much of a factor in the proposed use in this thread, tiny antelopes and other even larger animals if needed.....

308 Caliber CEB Copper Solid lengths Before and After Firing
180 CEB Copper Solid Unfired Length 1.152”
	Muzzle Velocity	25 yd Impact Velocity	Length After Recovered	Shorter By
308 Winchester	2544 fps	2404 fps	1.138” & 1.139”	— .013” to — .014”
300 Winchester	2992 fps	——————	1.129”	— .023”
210 CEB Copper Solid Unfired Length 1.341”
	Muzzle Velocity	25 yd Impact Velocity	Length After Recovered	Shorter By
308 Winchester	2341 fps	2237 fps	1.332” & 1.333”	—.008” to —.009”
300 Winchester	2815 fps	——————	1.317” & 1.322”	— .019” to — .024”
230 CEB Copper Solid Unfired Length 1.465”
	Muzzle Velocity	25 yd Impact Velocity	Length After Recovered	Shorter By
308 Winchester	2240 fps	—————	1.465” & 1.4605”	— .0045”
300 Winchester	2670 fps	——————	1.448” & 1.447”	— .017” to — .018”

Had great luck with these in other calibers, have not used the 300 on game.

For use on antelope and in particular the Tiny ones, this deformation will mean nothing and is a moot point, and they will perform outstandingly. Even on larger antelope+ I don't see any major issues in the field. Larger caliber Copper Solids have a bit more diameter and some less prone to deformation, but also it would be rare to run a big bore copper solid above 2600 fps........

These will accomplish the mission you are asking of them.
