Lyman 65A sight part

analog_peninsula

AH veteran
Joined
Dec 13, 2022
Messages
207
Reaction score
467
Location
Republic of Texas
Media
1
Member of
DSC, NRA, SCI
Hunted
South Africa, Namibia, Wyoming, Texas, Idaho, Mexico

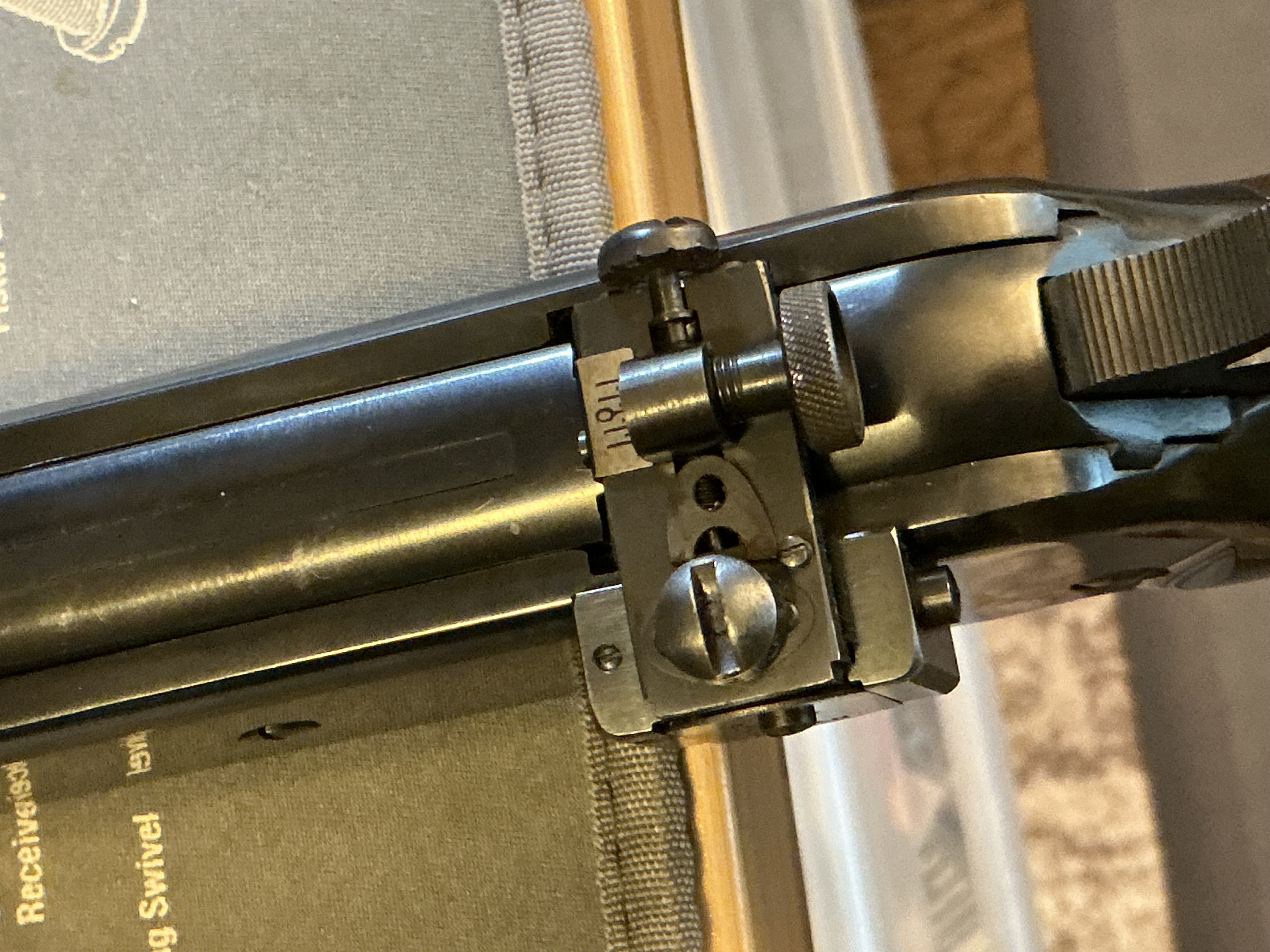

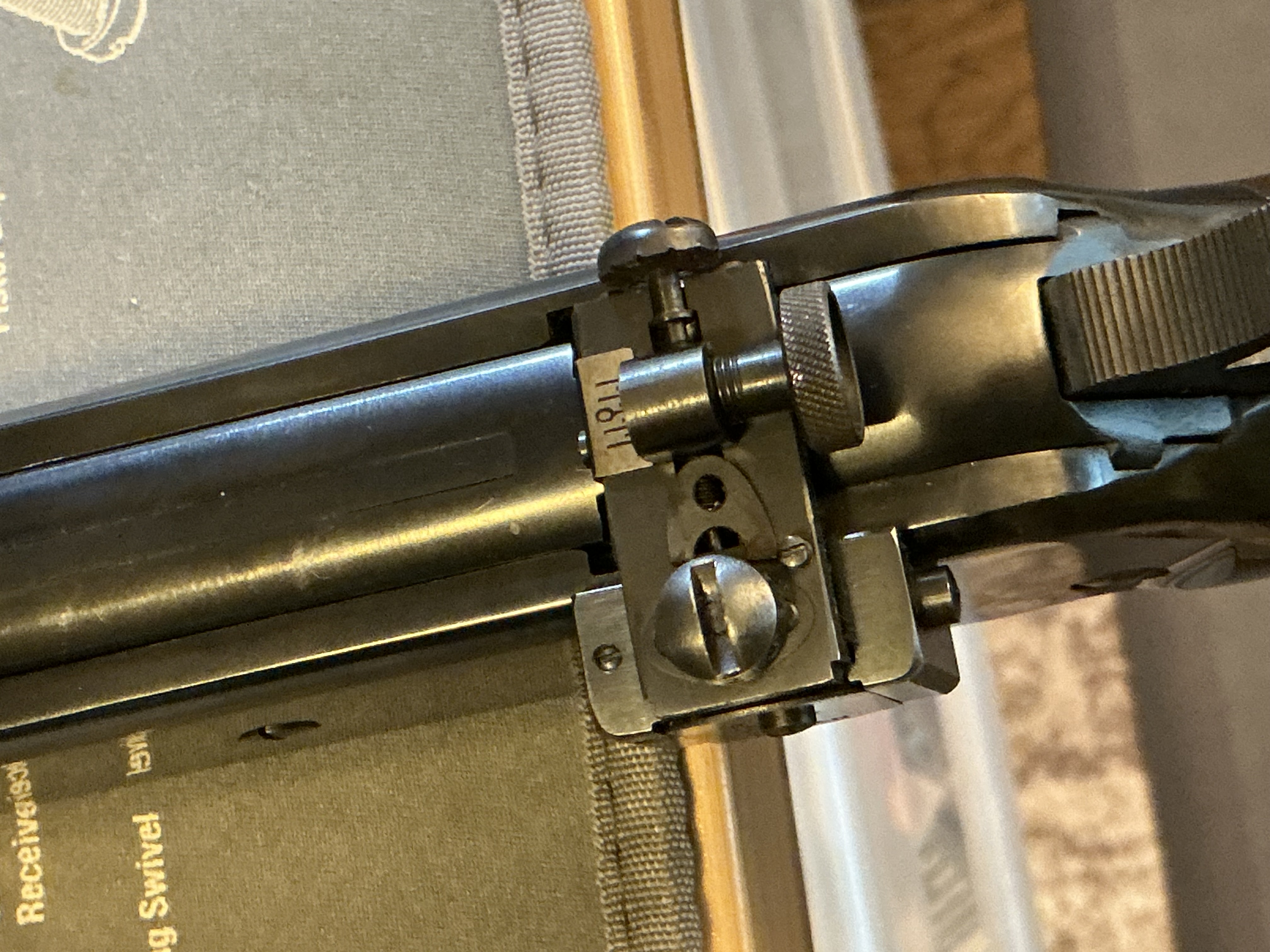

On a Lyman 65a receiver sight, there is a part that looks like an oblong washer that keeps the actual peep and underlying horizontal adjustment screw from lifting out. If you look at the attached image you can see that mine has broken in two for whatever reason. Can anyone tell me the name of this part, and hopefully where I can buy a replacement?

In the image, look to the left of the peep, and you can see the broken piece; half of it is under the large machine screw.


Attachments

  • IMG_0150.jpeg
    1.9 MB · Views: 32
So, I was wrong about how the part fits. It’s a wave spring washer. There are two, one under the big screw in the image, and the second (broken) one goes under the horizontal adjustment screw to keep it in place.

If you can’t find one you could make one from spring stock.

I found two thin 4mm spring wave washers, and it looks like they will keep things in place. Not as good as the right part, but as long as I minimize horizontal adjustment, it looks like it might work. I’ll confirm one way or the other after my next range session.

Jim Keller in Sioux Falls, SD has a lot of sight parts and makes them too.
Jim Keller, Sioux Falls, SD (605) - 460-1108
